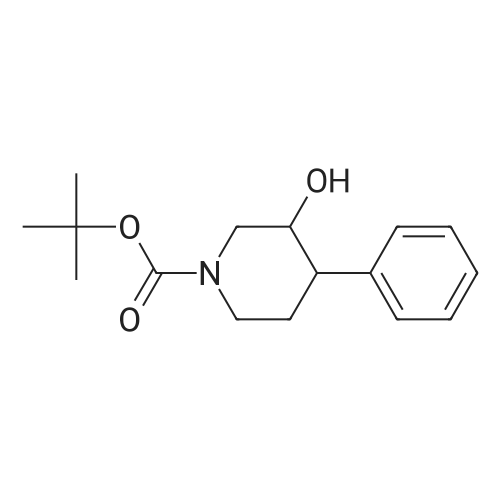

1-Boc-3-Hydroxy-4-phenylpiperidine

Cat.NO.:A118280 Purity:95%

Product Details of [ 1000931-04-3 ]

CAS No. :	1000931-04-3
Formula :	C₁₆H₂₃NO₃
M.W :	277.36
SMILES Code :	CC(C)(C)OC(=O)N1CCC(C(O)C1)C1=CC=CC=C1
MDL No. :	MFCD08461249
InChI Key :	HWNKSGVMOCONJS-UHFFFAOYSA-N
Pubchem ID :	20664715

Safety of [ 1000931-04-3 ]

GHS Pictogram:
Signal Word:	Warning
Hazard Statements:	H302-H315-H319-H335
Precautionary Statements:	P261-P305+P351+P338

Computational Chemistry of [ 1000931-04-3 ] Show Less

Physicochemical Properties

Num. heavy atoms	20
Num. arom. heavy atoms	6
Fraction Csp3	0.56
Num. rotatable bonds	4
Num. H-bond acceptors	3.0
Num. H-bond donors	1.0
Molar Refractivity	82.24
TPSA ? Topological Polar Surface Area: Calculated from Ertl P. et al. 2000 J. Med. Chem.	49.77 Å²

Lipophilicity

Log P_o/w (iLOGP)? iLOGP: in-house physics-based method implemented from Daina A et al. 2014 J. Chem. Inf. Model.	2.96
Log P_o/w (XLOGP3)? XLOGP3: Atomistic and knowledge-based method calculated by XLOGP program, version 3.2.2, courtesy of CCBG, Shanghai Institute of Organic Chemistry	2.37
Log P_o/w (WLOGP)? WLOGP: Atomistic method implemented from Wildman SA and Crippen GM. 1999 J. Chem. Inf. Model.	2.39
Log P_o/w (MLOGP)? MLOGP: Topological method implemented from Moriguchi I. et al. 1992 Chem. Pharm. Bull. Moriguchi I. et al. 1994 Chem. Pharm. Bull. Lipinski PA. et al. 2001 Adv. Drug. Deliv. Rev.	2.18
Log P_o/w (SILICOS-IT)? SILICOS-IT: Hybrid fragmental/topological method calculated by FILTER-IT program, version 1.0.2, courtesy of SILICOS-IT, http://www.silicos-it.com	1.88
Consensus Log P_o/w? Consensus Log P_o/w: Average of all five predictions	2.36

Water Solubility

Log S (ESOL):? ESOL: Topological method implemented from Delaney JS. 2004 J. Chem. Inf. Model.	-3.01
Solubility	0.271 mg/ml ; 0.000976 mol/l
Class? Solubility class: Log S scale Insoluble < -10 < Poorly < -6 < Moderately < -4 < Soluble < -2 Very < 0 < Highly	Soluble
Log S (Ali)? Ali: Topological method implemented from Ali J. et al. 2012 J. Chem. Inf. Model.	-3.06
Solubility	0.244 mg/ml ; 0.00088 mol/l
Class? Solubility class: Log S scale Insoluble < -10 < Poorly < -6 < Moderately < -4 < Soluble < -2 Very < 0 < Highly	Soluble
Log S (SILICOS-IT)? SILICOS-IT: Fragmental method calculated by FILTER-IT program, version 1.0.2, courtesy of SILICOS-IT, http://www.silicos-it.com	-2.98
Solubility	0.288 mg/ml ; 0.00104 mol/l
Class? Solubility class: Log S scale Insoluble < -10 < Poorly < -6 < Moderately < -4 < Soluble < -2 Very < 0 < Highly	Soluble

Pharmacokinetics

GI absorption? Gatrointestinal absorption: according to the white of the BOILED-Egg	High
BBB permeant? BBB permeation: according to the yolk of the BOILED-Egg	Yes
P-gp substrate? P-glycoprotein substrate: SVM model built on 1033 molecules (training set) and tested on 415 molecules (test set) 10-fold CV: ACC=0.72 / AUC=0.77 External: ACC=0.88 / AUC=0.94	No
CYP1A2 inhibitor? Cytochrome P450 1A2 inhibitor: SVM model built on 9145 molecules (training set) and tested on 3000 molecules (test set) 10-fold CV: ACC=0.83 / AUC=0.90 External: ACC=0.84 / AUC=0.91	No
CYP2C19 inhibitor? Cytochrome P450 2C19 inhibitor: SVM model built on 9272 molecules (training set) and tested on 3000 molecules (test set) 10-fold CV: ACC=0.80 / AUC=0.86 External: ACC=0.80 / AUC=0.87	No
CYP2C9 inhibitor? Cytochrome P450 2C9 inhibitor: SVM model built on 5940 molecules (training set) and tested on 2075 molecules (test set) 10-fold CV: ACC=0.78 / AUC=0.85 External: ACC=0.71 / AUC=0.81	No
CYP2D6 inhibitor? Cytochrome P450 2D6 inhibitor: SVM model built on 3664 molecules (training set) and tested on 1068 molecules (test set) 10-fold CV: ACC=0.79 / AUC=0.85 External: ACC=0.81 / AUC=0.87	Yes
CYP3A4 inhibitor? Cytochrome P450 3A4 inhibitor: SVM model built on 7518 molecules (training set) and tested on 2579 molecules (test set) 10-fold CV: ACC=0.77 / AUC=0.85 External: ACC=0.78 / AUC=0.86	No
Log Kp (skin permeation)? Skin permeation: QSPR model implemented from Potts RO and Guy RH. 1992 Pharm. Res.	-6.31 cm/s

Druglikeness

Lipinski? Lipinski (Pfizer) filter: implemented from Lipinski CA. et al. 2001 Adv. Drug Deliv. Rev. MW ≤ 500 MLOGP ≤ 4.15 N or O ≤ 10 NH or OH ≤ 5	0.0
Ghose? Ghose filter: implemented from Ghose AK. et al. 1999 J. Comb. Chem. 160 ≤ MW ≤ 480 -0.4 ≤ WLOGP ≤ 5.6 40 ≤ MR ≤ 130 20 ≤ atoms ≤ 70	None
Veber? Veber (GSK) filter: implemented from Veber DF. et al. 2002 J. Med. Chem. Rotatable bonds ≤ 10 TPSA ≤ 140	0.0
Egan? Egan (Pharmacia) filter: implemented from Egan WJ. et al. 2000 J. Med. Chem. WLOGP ≤ 5.88 TPSA ≤ 131.6	0.0
Muegge? Muegge (Bayer) filter: implemented from Muegge I. et al. 2001 J. Med. Chem. 200 ≤ MW ≤ 600 -2 ≤ XLOGP ≤ 5 TPSA ≤ 150 Num. rings ≤ 7 Num. carbon > 4 Num. heteroatoms > 1 Num. rotatable bonds ≤ 15 H-bond acc. ≤ 10 H-bond don. ≤ 5	0.0
Bioavailability Score? Abbott Bioavailability Score: Probability of F > 10% in rat implemented from Martin YC. 2005 J. Med. Chem.	0.55

Medicinal Chemistry

PAINS? Pan Assay Interference Structures: implemented from Baell JB. & Holloway GA. 2010 J. Med. Chem.	0.0 alert
Brenk? Structural Alert: implemented from Brenk R. et al. 2008 ChemMedChem	0.0 alert: heavy_metal
Leadlikeness? Leadlikeness: implemented from Teague SJ. 1999 Angew. Chem. Int. Ed. 250 ≤ MW ≤ 350 XLOGP ≤ 3.5 Num. rotatable bonds ≤ 7	No; 1 violation:MW<0.0
Synthetic accessibility? Synthetic accessibility score: from 1 (very easy) to 10 (very difficult) based on 1024 fragmental contributions (FP2) modulated by size and complexity penaties, trained on 12’782’590 molecules and tested on 40 external molecules (r² = 0.94)	3.09

Application In Synthesis of [ 1000931-04-3 ]

* All experimental methods are cited from the reference, please refer to the original source for details. We do not guarantee the accuracy of the content in the reference.

Downstream synthetic route of [ 1000931-04-3 ]

[ 1000931-04-3 ] Synthesis Path-Downstream 1~4

1
[ 100-59-4 ]
[ 161157-50-2 ]
[ 1000931-04-3 ]

Yield	Reaction Conditions	Operation in experiment
94%		According to Tetrahedron Lett., 1979, 17, 1503, to a stirred solution of phenylmagnesium chloride (0.753 mL, 1.51 mmol) and copper (I) iodide (0.0191 g, 0.100 mmol) in THF (3 mL) at -300C was added tert-butyl 7-oxa-3-aza- bicyclo[4.1.0]heptane-3-carboxylate (0.200 g, 1.00 mmol) in THF (1 mL) . The mixture was allowed to warm to room temperature and was stirred for 16 h. It was then quenched with saturated aqueous ammonium chloride and the mixture was extracted with AcOEt. The combined organic layers were dried (sodium sulfate) , filtered, and concentrated in vacuo to give tert-butyl 3-hydroxy-4-phenylpiperidine-l-carboxylate (0.261 g, 94%) as an oil: 1H NMR (400 MHz, DMSO-d6) delta 1-49 (s, 9H), 1.76 (m, 3H), 2.50-2.78 (m, 3H), 3.70 (m, IH), 4.30 (bd, IH), 7.30 (m, 5H).

References: [1]Patent: WO2008/11130,2008,A2 .Location in patent: Page/Page column 136-137.

Yield	Reaction Conditions	Operation in experiment
		(s) From (3RS,4SR)-4-phenyl-piperidin-3-ol [J. A. Gauthier et al., U.S. Pat. No. 4,132,710] by introduction of the BOC group there was obtained tert-butyl (3RS,4SR)-3-hydroxy-4-phenyl-piperidine-1-carboxylate as a colourless solid; m.p.: 134-134.5 C. Subsequent alkylation with 2-bromomethylnaphthalene gave tert-butyl (3RS,4SR)-3-(naphthalen-2-ylmethoxy)-4-phenyl-piperidine-1-carboxylate as a colourless solid; MS: 417 (M)+.

3
[ 1000931-04-3 ]
tert-butyl (3RS,4RS)-4-cyclohexyl-3-(naphthalen-2-ylmethoxy)-piperidine-1-carboxylate [ No CAS ]

Yield	Reaction Conditions	Operation in experiment
	rhodium(5%)-aluminium oxide; In methanol;	(j) A solution of 4.0 g tert-butyl (13.8 mmol) of <strong>[1000931-04-3]tert-butyl (3RS,4RS)-3-hydroxy-4-phenyl-piperidine-1-carboxylate</strong> in 100 ml of methanol was hydrogenated at 150 bar at 100 C. for 18 hours using a rhodium(5%)-aluminium oxide catalyst. For the working up, the catalyst was filtered off, washed with methanol and the solution obtained was evaporated under reduced pressure. For purification, the residue was chromatographed on silica gel using a 4:1 mixture of hexane and ethyl acetate as the eluent. There were obtained 2.32 g (59% of theory) of tert-butyl (3RS,4RS)-4-cyclohexyl-3-(naphthalen-2-ylmethoxy)-piperidine-1-carboxylate as a colourless solid; MS: 283 (M)+.

References: [1]Patent: US6051712,2000,A .

4
[ 40807-61-2 ]
(3R*,4R*)-3-hydroxy-4-phenylpiperidine [ No CAS ]
[ 1000931-04-3 ]

Yield	Reaction Conditions	Operation in experiment
		(a) From 4-phenyl-piperidin-4-ol there was obtained by elimination 4-phenyl-1,2,3,6-tetrahydro-pyridine as a light yellow oil; MS: 159 (M)+. Subsequent hydroboration gave (3RS,4RS)-4-phenyl-piperidin-3-ol as a colourless solid; MS: 177 (M)+. Introduction of the BOC group yielded tert-butyl (3RS,4RS)-3-hydroxy-4-phenyl-piperidine-1-carboxylate as a colourless solid; MS: 277 (M)+.

References: [1]Patent: US6051712,2000,A .
